HgBa$_{2}$CaCu$_{2}$O$_{6}$ (Hg-1212) Structure: A2BC2DE6_tP12_123_h_c_g_b_gi-001
| Prototype | Ba$_{2}$CaCu$_{2}$HgO$_{4}$ |
| AFLOW prototype label | A2BC2DE6_tP12_123_h_c_g_b_gi-001 |
| ICSD | 75725 |
| CCDC | 1636369 |
| Pearson symbol | tP12 |
| Space group number | 123 |
| Space group symbol | $P4/mmm$ |
| AFLOW prototype command |
aflow --proto=A2BC2DE6_tP12_123_h_c_g_b_gi-001
--params=$a, \allowbreak c/a, \allowbreak z_{3}, \allowbreak z_{4}, \allowbreak z_{5}, \allowbreak z_{6}$ |
Other compounds with this structure
SnSr$_{2}$CaCu$_{2}$O$_{7-x}$, TlSr$_{2}$PrCu$_{2}$O$_{7-x}$
- The Hg-$12(n-1)n$, or $n$HBCCO in the notation of (Bacq-Labreuil, 2025), cuprates have the general formula HgBa$_{2}$Ca$_{n-1}$Cu$_{n}$O$_{2n+2+\delta}$. These are tetragonally-stacked perovskite-like compounds similar to tetragonal YBa$_{2}$Cu$_{3}$O$_{7}-x$, and all are superconducting at temperatures near or above 100K. Although compounds have been structured for $n \le 16$ (Bacq-Labreuil, 2025) we will limit ourselves to tabluating the first three. In addition, we will only list the zero-pressure structures and assume perfect stoiciometry. In practice the can be additional oxygen ($\delta > 0$) and a deficit of barium.
- We include the structures
- Hg1201/1HBCCO: HgBa$_{2}$CuO$_{4}$,
- Hg1212/2HBCCO: HgBa$_{2}$CaCu$_{2}$O$_{6}$ (this structure), and
- Hg1223/3HBCCO: HgBa$_{2}$Ca$_{2}$Cu$_{3}$O$_{8}$
- If we replace the calcium atom by copper, this becomes the tetragonal YBa$_{2}$Cu$_{3-x}$O$_{7-y}$ structure. In line with this, excess oxygen in this structure most likely can be found on the (2e) (0 1/2 1/2) site.
- (Hunter, 1994) inadvertently state that their O1 (our O II) site is on Wyckoff position (2e). It is actually at Wyckoff position (4i) as shown here and in the ICSD entry.
- AFLOW shifted the origin of the experimental report of the structure, moving the mercury atom from the (1a) to the (1b) site.

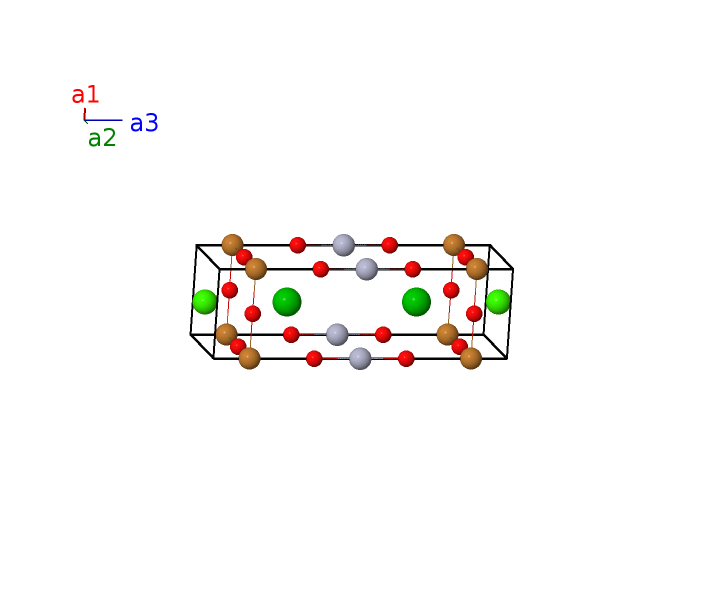

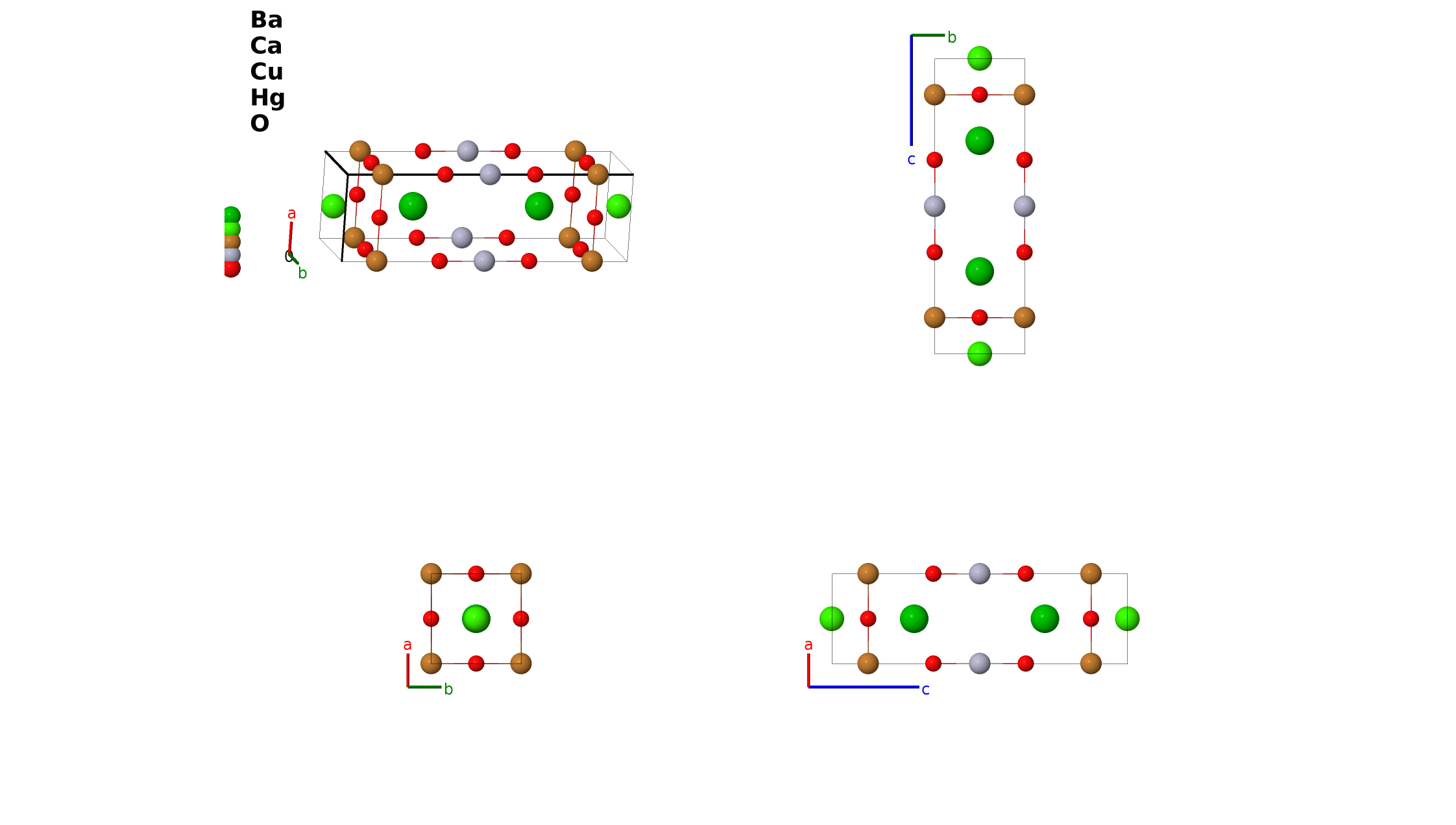

\[ \begin{array}{ccc}
\mathbf{a_{1}}&=&a \,\mathbf{\hat{x}}\\\mathbf{a_{2}}&=&a \,\mathbf{\hat{y}}\\\mathbf{a_{3}}&=&c \,\mathbf{\hat{z}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $\frac{1}{2} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}c \,\mathbf{\hat{z}}$ | (1b) | Hg I |
| $\mathbf{B_{2}}$ | = | $\frac{1}{2} \, \mathbf{a}_{1}+\frac{1}{2} \, \mathbf{a}_{2}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}a \,\mathbf{\hat{y}}$ | (1c) | Ca I |
| $\mathbf{B_{3}}$ | = | $z_{3} \, \mathbf{a}_{3}$ | = | $c z_{3} \,\mathbf{\hat{z}}$ | (2g) | Cu I |
| $\mathbf{B_{4}}$ | = | $- z_{3} \, \mathbf{a}_{3}$ | = | $- c z_{3} \,\mathbf{\hat{z}}$ | (2g) | Cu I |
| $\mathbf{B_{5}}$ | = | $z_{4} \, \mathbf{a}_{3}$ | = | $c z_{4} \,\mathbf{\hat{z}}$ | (2g) | O I |
| $\mathbf{B_{6}}$ | = | $- z_{4} \, \mathbf{a}_{3}$ | = | $- c z_{4} \,\mathbf{\hat{z}}$ | (2g) | O I |
| $\mathbf{B_{7}}$ | = | $\frac{1}{2} \, \mathbf{a}_{1}+\frac{1}{2} \, \mathbf{a}_{2}+z_{5} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}a \,\mathbf{\hat{y}}+c z_{5} \,\mathbf{\hat{z}}$ | (2h) | Ba I |
| $\mathbf{B_{8}}$ | = | $\frac{1}{2} \, \mathbf{a}_{1}+\frac{1}{2} \, \mathbf{a}_{2}- z_{5} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}a \,\mathbf{\hat{y}}- c z_{5} \,\mathbf{\hat{z}}$ | (2h) | Ba I |
| $\mathbf{B_{9}}$ | = | $\frac{1}{2} \, \mathbf{a}_{2}+z_{6} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{y}}+c z_{6} \,\mathbf{\hat{z}}$ | (4i) | O II |
| $\mathbf{B_{10}}$ | = | $\frac{1}{2} \, \mathbf{a}_{1}+z_{6} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}+c z_{6} \,\mathbf{\hat{z}}$ | (4i) | O II |
| $\mathbf{B_{11}}$ | = | $\frac{1}{2} \, \mathbf{a}_{2}- z_{6} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{y}}- c z_{6} \,\mathbf{\hat{z}}$ | (4i) | O II |
| $\mathbf{B_{12}}$ | = | $\frac{1}{2} \, \mathbf{a}_{1}- z_{6} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}- c z_{6} \,\mathbf{\hat{z}}$ | (4i) | O II |
References
- B. A. Hunter, J. D. Jorgensen, J. L. Wagner, P. G. Radaelli, D. G. Hinks, H. Shaked, R. L. Hitterman, and R. B. V. Dreele, Pressure-induced structural changes in superconducting HgBa$_{2}$Ca$_{n-1}$CunO$_{2n+2+\delta}$ (n = 1, 2, 3) compounds, Physica C 221, 1–10 (1994), doi:10.1016/0921-4534(94)90659-9.
Found in
- B. Bacq-Labreuil, B. Lacasse, A.-M. S. Tremblay, D. Sénéchal, and K. Haule, Towards an {\em ab initio} theory of high-temperature superconductors: a study of multilayer cuprates, Phys. Rev. X 15, 021071 (2025), doi:10.1103/PhysRevX.15.021071.
First cited in
- N. Anderson, M. J. Mehl, H. Eckert, S. Divilov, X. Campilongo, S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 5. Submitted to Computational Materials Science (2026).
Geometry files
Prototype Generator
aflow --proto=A2BC2DE6_tP12_123_h_c_g_b_gi --params=$a,c/a,z_{3},z_{4},z_{5},z_{6}$
