$\alpha$–U ($A20$) Structure: A_oC4_63_c
| Prototype | : | $\alpha$–U |
| AFLOW prototype label | : | A_oC4_63_c |
| Strukturbericht designation | : | $A20$ |
| Pearson symbol | : | oC4 |
| Space group number | : | 63 |
| Space group symbol | : | $\text{Cmcm}$ |
| AFLOW prototype command | : | aflow --proto=A_oC4_63_c --params=$a$,$b/a$,$c/a$,$y_{1}$ |
Other elements and compounds with this structure
- Tb, Dy, Ge (metastable), AgCd (random alloy), γ–Ti
- Using data for the $\alpha$–U structure at 4.2K. (Vohra, 2001) showed that at pressures above 116 GPa titanium transforms from the hexagonal omega ($C32$) phase to this phase. This structure was studied by (Wentzcovitch, 1987) as a possible pathway for the pressure-induced transformation of magnesium from the hcp ($A3$) to the bcc ($A2$) phase. Much like the trigonal omega phase ($C6$), we can generate several high-symmetry structures from this phase by the appropriate choice of parameters. \[ \begin{array}{cp{2.0cm}p{2.0cm}p{2.0cm}p{2.0cm}} \text{$\textbf{Lattice parameter}$} & \text{$\textbf{hcp}$} & \text{$\textbf{bcc}$} & \text{$\textbf{fcc}$} & \text{$\textbf{simple cubic}$} \\ a & a_{hcp} & a_{bcc} & a_{fcc} & a_{sc} \\ b & \sqrt{3}a_{hcp} & \sqrt{2}a_{bcc} & a_{fcc} & a_{sc} \\ c & c_{hcp} & \sqrt{2}a_{bcc} & a_{fcc} & 2a_{sc} \\ y & \frac{1}{6} & \frac{1}{4} & \frac{1}{4} & 0 \\ \text{$\textit{Strukturbericht}$} & A3 & A2 & A1 & A_{h} \\ \text{Pearson symbol} & \text{hP2} & \text{cI2} & \text{cF4} & \text{cP1} \\ \text{Space group} & \text{P6$_{3}$/mmc} & \text{Im$\bar{3}$m} & \text{Fm$\bar{3}$m} & \text{Pm$\bar{3}$m} \\ \end{array} \]

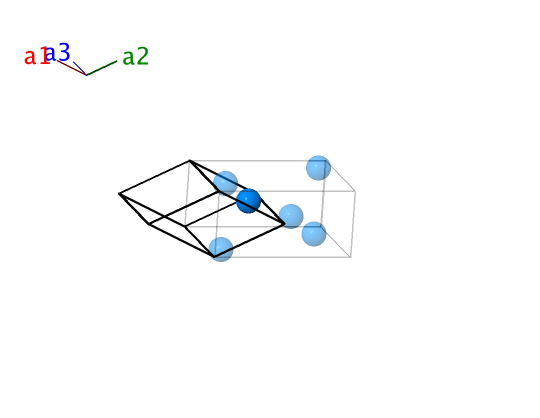

Base-centered Orthorhombic primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & \frac12 \, a \, \mathbf{\hat{x}} - \frac12 \, b \, \mathbf{\hat{y}} \\
\mathbf{a}_2 & = & \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, b \, \mathbf{\hat{y}} \\
\mathbf{a}_3 & = & c \, \mathbf{\hat{z}}
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \text{Lattice Coordinates} & & \text{Cartesian Coordinates} &\text{Wyckoff Position} & \text{Atom Type} \\ & & \text{Lattice Coordinates} & & \text{Cartesian Coordinates} &\text{Wyckoff Position} & \text{Atom Type} \\& & & & & & \\ \mathbf{B}_{1} & =& - y_{1} \, \mathbf{a}_{1} + y_{1} \, \mathbf{a}_{2} + \frac14 \, \mathbf{a}_{3}& =& y_{1} \, b \, \mathbf{\hat{y}} + \frac14 \, c \mathbf{\hat{z}}& \left(4c\right) & \text{U} \\ \mathbf{B}_{2} & =& y_{1} \, \mathbf{a}_{1} - y_{1} \, \mathbf{a}_{2} + \frac34 \, \mathbf{a}_{3}& =& - y_{1} \, b \, \mathbf{\hat{y}} + \frac34 \, c \mathbf{\hat{z}}& \left(4c\right) & \text{U} \\ \end{array} \]References
- C. S. Barrett, M. H. Mueller, and R. L. Hitterman, Crystal Structure Variations in Alpha Uranium at Low Temperatures, Phys. Rev. 129, 625–629 (1963), doi:10.1103/PhysRev.129.625.
- Y. K. Vohra and P. T. Spencer, Novel gamma–Phase of Titanium Metal at Megabar Pressures, Phys. Rev. Lett. 86, 3068–3071 (2001), doi:10.1103/PhysRevLett.86.3068.
- R. M. Wentzcovitch and M. L. Cohen, Theoretical model for the hcp–bcc transition in Mg, Phys. Rev. B 37, 5571–5576 (1988), doi:10.1103/PhysRevB.37.5571.
