Enantiomorphic space groups
In affine space — i.e., no defined origin — there are only
219 space groups (referred to as the affine space groups).
The eleven remaining space groups are mirror images (left‐handed versus right‐handed structures)
of one of the other 219 space groups and are equivalent in the affine space.
These pairs of space groups are the enantiomorphic pairs,
in which two prototypes can be formed as mirror images of
a single structure. The eleven pairs of enantiomorphic space
groups (Online Dictionary of Crystallography, ITC-A) are:
The relationship between the enantiomorphic pairs is exploited in this encyclopedia
to generate prototypes for otherwise unrepresented space groups.
If we look at space group $P4_{1}$ (#76), we see that it has
one Wyckoff position ($4a$), with operations (Bilbao Crystallographic Server)
The distance between any pair of atoms is the same in
the $P4_{3}$ structure as it is in the $P4_{1}$ structure, and the angle
between any three atoms is the same in both structures.
It follows that the structures are degenerate, there is no difference in energy between them,
and they should be equally likely to form.
Any structure in space group $P4_{1}$ can be transformed into
$P4_{3}$ by this method. Pairs of space groups which allow these
transformations are said to be enantiomorphic (Online Dictionary of Crystallography, ITC-A), or
chiral.
In addition, forty-three other space groups allow chiral
crystal structures. The complete set of sixty-five space
groups are known as the Sohncke groups (Online Dictionary of Crystallography).
- $P4_{1}$ (#76) and $P4_{3}$ (#78),
- $P4_{1}22$ (#91) and $P4_{3}22$ (#95),
- $P4_{1}2_{1}2$ (#92) and $P4_{3}2_{1}2$ (#96),
- $P3_{1}$ (#144) and $P3_{2}$ (#145),
- $P3_{1}12$ (#151) and $P3_{2}12$ (#153),
- $P3_{1}21$ (#152) and $P3_{2}21$ (#154),
- $P6_{1}$ (#169) and $P6_{5}$ (#170),
- $P6_{2}$ (#171) and $P6_{4}$ (#172),
- $P6_{1}22$ (#178) and $P6_{5}22$ (#179),
- $P6_{2}22$ (#180) and $P6_{4}22$ (#181), and
- $P4_{1}32$ (#213) and $P4_{3}32$ (#212).
\[
\left(x, y, z\right)
\left(-x, -y, z + \frac{1}{2}\right)
\left(-y, x, z + \frac{1}{4}\right)
\left(y, -x, z + \frac{3}{4}\right).
\]
If we then look at space group $P4_{3}$ (#78), we find it also has
one ($4a$) Wyckoff position, with operations
\[
\left(x, y, z\right)
\left(-x, -y, z + \frac{1}{2}\right)
\left(-y, x, z + \frac{3}{4}\right)
\left(y, -x, z + \frac{1}{4}\right),
\]
where the only difference is that the 1/4 and 3/4 fractions
have swapped positions. We can easily show that space
group #78 is a mirror reflection of #76 in the $z = 0$ plane.

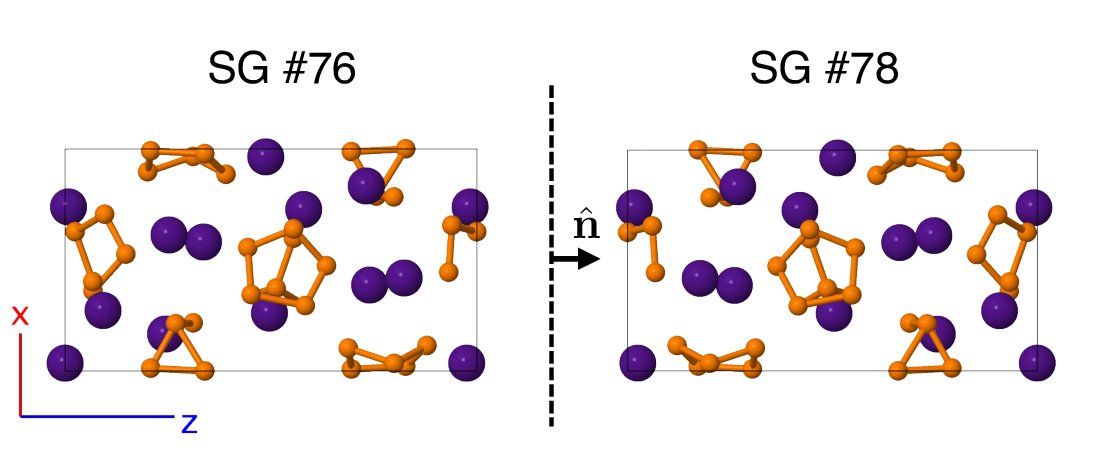

To see this more clearly, consider the Cs3P7 structure
(A3B7_tP40_76_3a_7a). This structure was found in
space group #76, but if we reflect all of the coordinates
through the $z = 0$ plane, it transforms into a structure in
space group #78, as shown below.
The distance between any pair of atoms is the same in
the $P4_{3}$ structure as it is in the $P4_{1}$ structure, and the angle
between any three atoms is the same in both structures.
It follows that the structures are degenerate, there is no difference in energy between them,
and they should be equally likely to form.
Any structure in space group $P4_{1}$ can be transformed into
$P4_{3}$ by this method. Pairs of space groups which allow these
transformations are said to be enantiomorphic (Online Dictionary of Crystallography, ITC-A), or
chiral.
In addition, forty-three other space groups allow chiral
crystal structures. The complete set of sixty-five space
groups are known as the Sohncke groups (Online Dictionary of Crystallography).
